AH– Series Design 06

Price range: $21,000.00 through $32,000.00

Home Type	Fully Finished Expandable Modular Home (AH-Series Design 06)
Overview	The AH-Series Design 06 is our signature “Butterfly” expandable model, featuring a high-contrast matte black galvanized steel frame and clean white minimalist panels. This unit is engineered for maximum portability and space efficiency, utilizing a precision folding mechanism that expands from a standard shipping footprint into a spacious residential layout. Available in 20ft, 30ft, and 40ft configurations. Includes a recessed central glass entry, high-performance insulation, and a fully finished “Plug & Play” interior.
Payment Plan	• 40% deposit to initiate precision production • 60% balance before shipping after customer reviews final factory photos & quality completion updates
Build Timeline	Production: 30–45 days · Shipping: 25–40 days depending on ZIP code. Rapid on-site expansion takes less than 2 hours.

SKU: N/A Category: Modular & Pre-Fabricated Homes

Description

Alivance Homes USA — A Division of Alivance Tech LLC (U.S. Registered Company)
Brand Overview	Alivance Homes specializes in precision-engineered modular solutions for the U.S. market. Our homes are built in quality-controlled factory environments, ensuring superior insulation, structural durability, and rapid deployment compared to traditional construction. Each unit is delivered fully finished with integrated electrical and plumbing systems.
Model	AH-Series – Design 06 (Expandable Butterfly Edition) A versatile and modern residential solution available in 20FT, 30FT, and 40FT sizes. Design 06 is defined by its industrial-chic aesthetic, featuring white insulated panels framed by bold matte-black galvanized steel. Its unique folding wings allow for massive interior volume while maintaining a portable footprint for easy delivery and relocation.
Structural System	Constructed with a heavy-duty Q235B galvanized steel skeleton. The “Butterfly” expansion mechanism uses reinforced hinges and hydraulic-assisted leveling points. The walls consist of 75mm high-density thermal panels (EPS/Rockwool) designed to meet U.S. energy efficiency standards and provide high fire resistance.

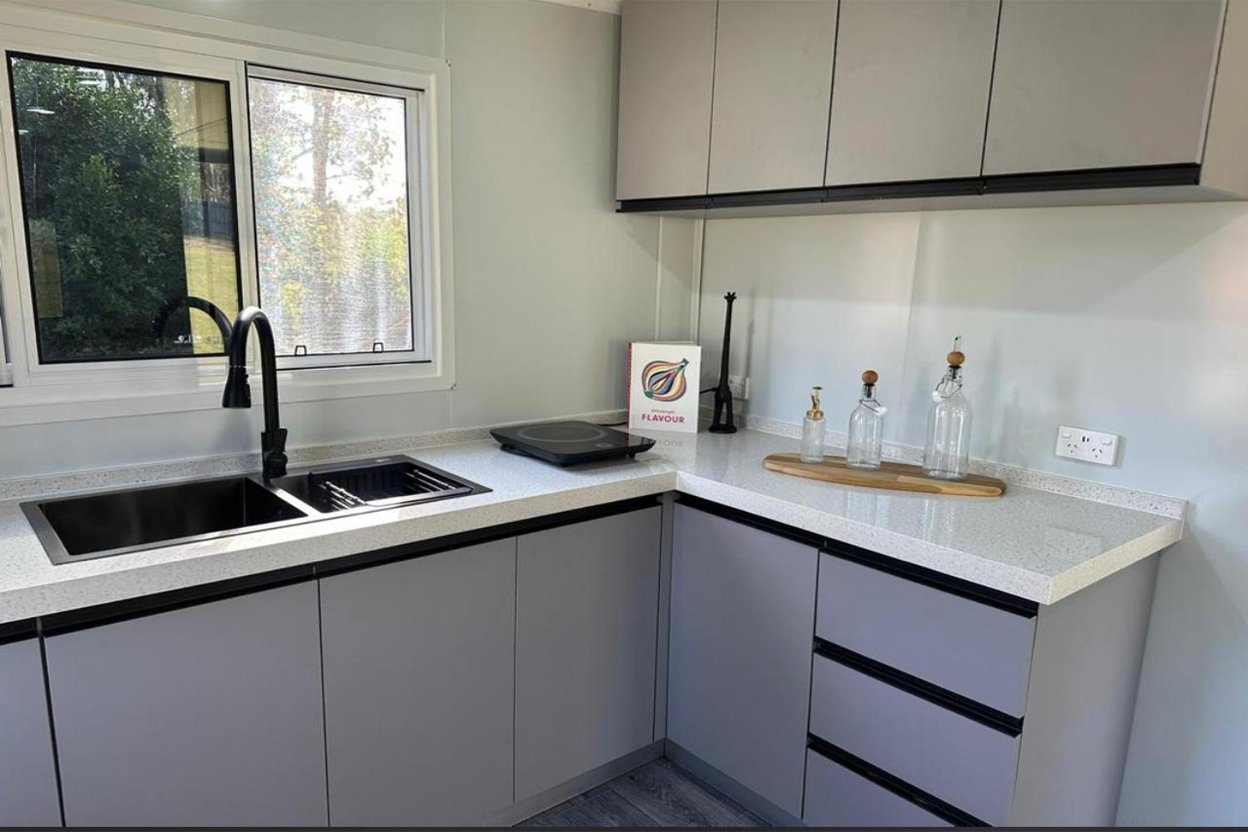

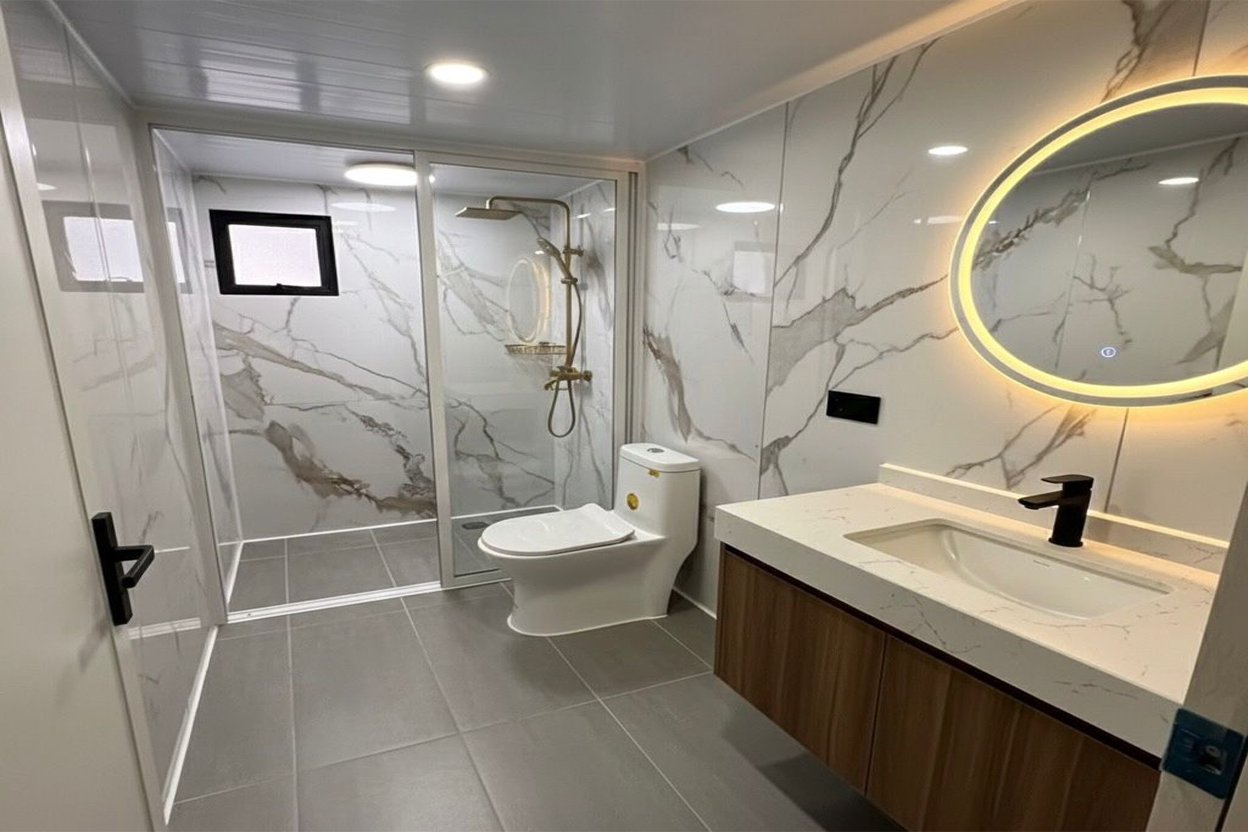

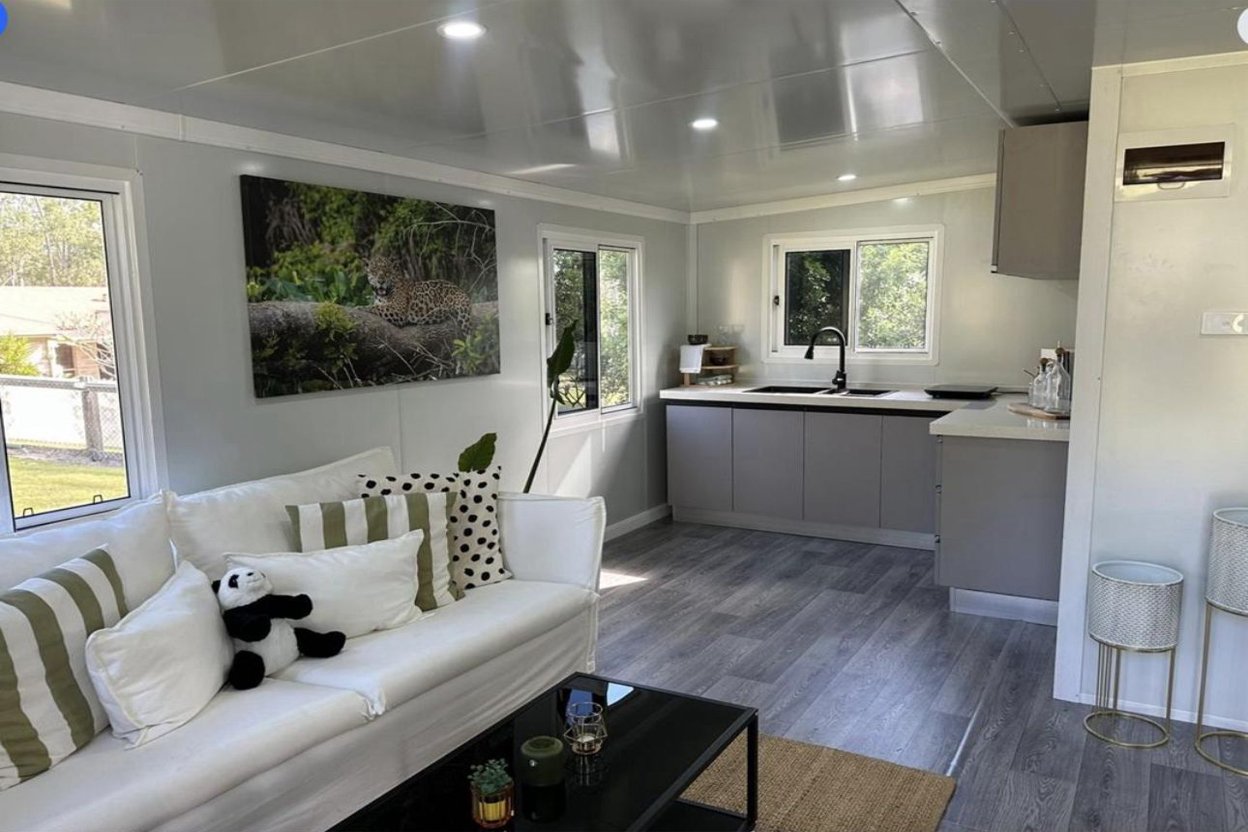

Interior & Bathroom	The interior is pre-finished with a bright, open-plan layout including: • Central recessed living area with floor-to-ceiling glass doors • Fully equipped kitchen with designer cabinetry and sink • 1 to 3 bedroom floor plans available depending on frame length • Complete bathroom suite with modern vanity, toilet, and walk-in shower pre-plumbed for easy NPT connection.
Windows & Doors	Designed to maximize natural light through at least five panoramic black-framed sliding windows. The main entrance features a central double-glass door unit with thermal-break aluminum frames and tempered safety glass for enhanced security and insulation.
Exterior Aesthetics	Design 06 utilizes a “Modern Industrial” color palette: • Arctic White smooth-finish main panels • Matte Black structural framing and window trim • Integrated flat roof profile for a low-impact, modern silhouette.
Electrical & Plumbing	All internal wiring is factory-installed to US Standard (110V/220V). Includes LED lighting throughout, modern switches, and NPT plumbing connections for rapid site setup.
Additional Features	Recessed entry for weather protection, fire-resistant internal MGO flooring boards, seismic-resistant frame, and full “Plug & Play” readiness for immediate move-in upon expansion.

Additional information

Size	20ft, 30ft, 40ft

Floor Plan & Specifications

Floor Plan & Technical Specifications — AH-Series Design 06
Model Summary	A high-efficiency "Butterfly" expandable modular home. This model is characterized by its rapid expansion capabilities and modern black-and-white industrial design.
Total Floor Area	Scalable: Approx. 37 m² (20FT) / 55 m² (30FT) / 74 m² (40FT) when fully expanded.
Dimensions	Standard 20FT expanded size: 5900 mm (W) × 6300 mm (L) × 2480 mm (H).
Approx. Unit Weight	≈ 2800 kg – 4500 kg (Depending on frame size and internal fit-out).

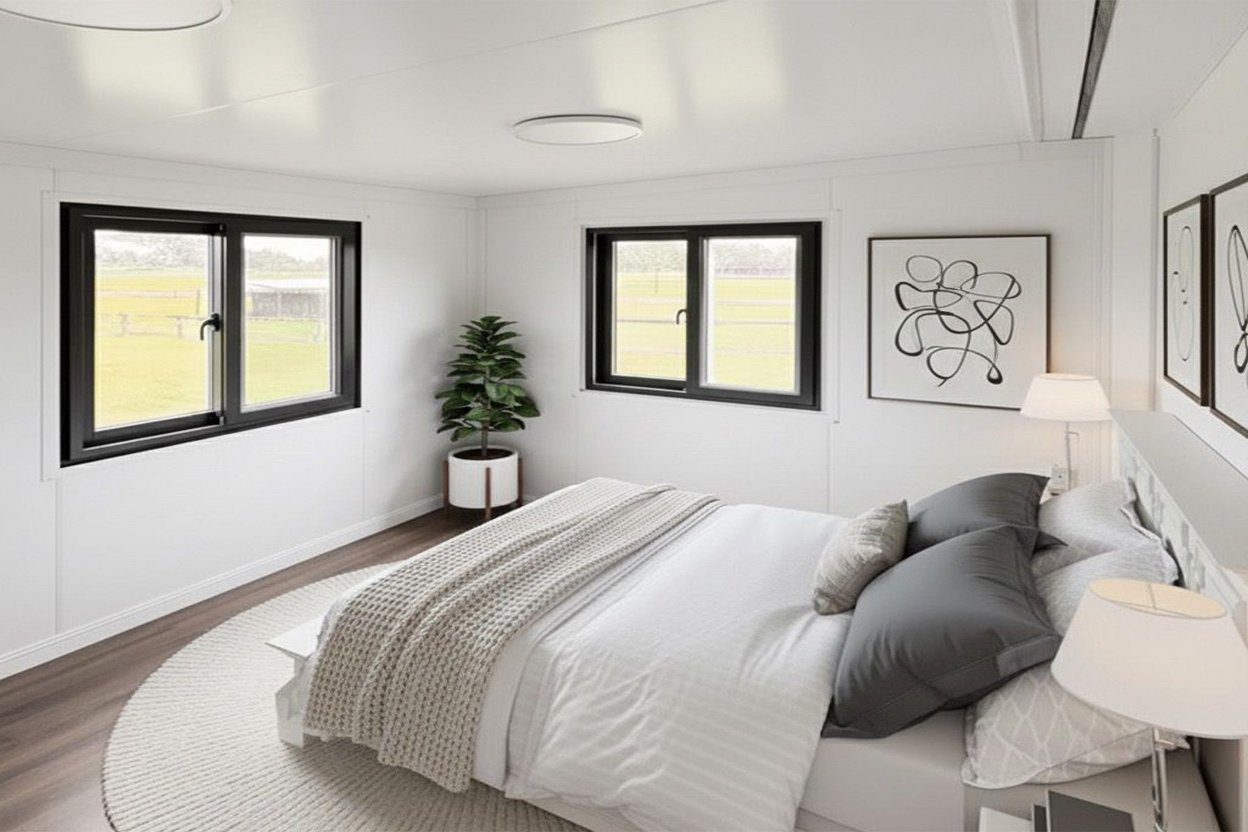

Internal Layout	Configurable as 1, 2, or 3 bedroom layouts with central living area and pre-installed kitchen and bathroom.
Structural Specifications
Main Frame	Hot-dip galvanized steel (Q235B) with a 20+ year residential life expectancy.
Wall & Roof	Thermal-insulated EPS sandwich panels with fire-retardant white smooth exterior finish.
Windows & Doors	Black-finished aluminum sliding windows with double-layer tempered glass.

Floor Plan:

Shipping & Delivery

Shipping & Delivery — AH-SERIES Design 02
Service Region	Continental United States. Logistics for remote locations or specific ZIP codes are quoted individually based on route accessibility.
Dispatch & Transit	Typical production-to-port window: 30-45 days. Ocean transit to U.S. ports generally takes 25-40 days. Final delivery timing depends on local port congestion and destination proximity.
Delivery Method	Units are shipped on heavy-duty flatbed or container trucks. Final delivery is made to the nearest accessible road-point of your site. Final shipping price is determined by site road access.
Customer Responsibilities	Ensure road access for large trucks; prepare a level foundation; arrange for a crane or forklift for off-loading; and secure any required local placement permits.
Shipping Basis (DDP)	Shipped on a Delivered Duty Paid basis. We handle international freight, customs clearance, and import duties. Price excludes on-site unloading and installation.
Customization Pricing	Note: Final delivery fees are shared after customization and location assessment. Shipping costs vary based on distance from the port and specific site entry conditions.
Plug and Play Setup	Pre-wired and pre-plumbed for U.S. standards. Buyers must engage local licensed contractors for final utility connections (electric, water, and sewer).
